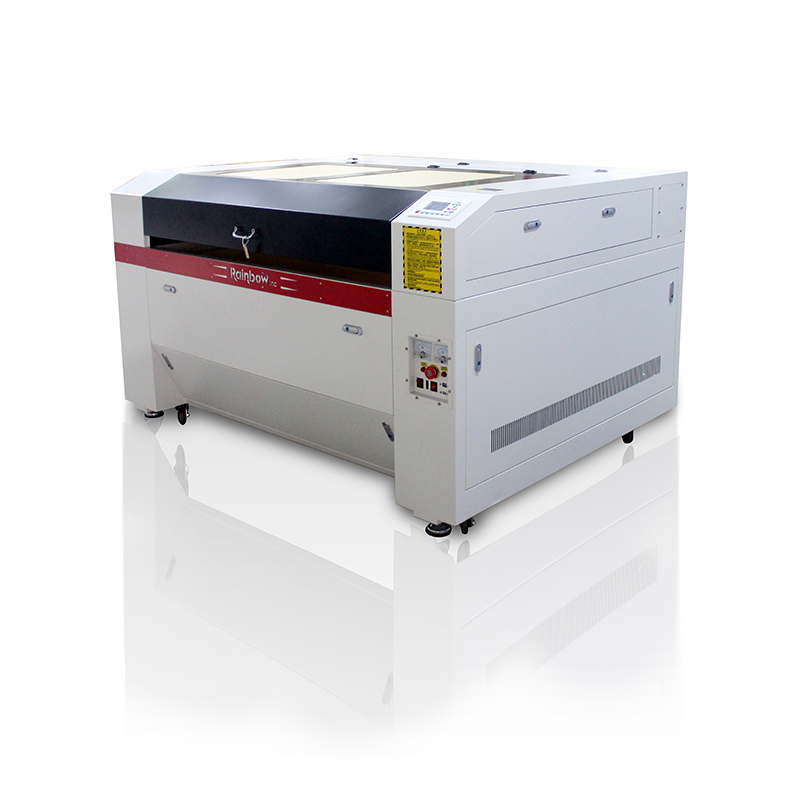

Rainbow 130*90CM Working Area Industrial Large Format Cloth Co2 Laser Cutting Machine

Item No.: RBL1390H
Rainbow RBL1390H Co2 laser cutting machine can be installed 100w-150w laser tube. The machine has max 130*90 cm woking area. And it has two windows in front and behind of machine, very long materials can go through the machine as well.

Laser power: 100w/130w/150w Min line width: 0.01mm
Control system: Ruida system Repetition accuracy: ±0.0001mm
Cooling system: Water circulation Electrical Requirement: AC 90-250V/50Hz 5A
Output frequency: 20KHz-80KHz Working speed: 0-500mm/s
Working area: 1300*900(mm) Working table: Electric lifting honeycomb table

Machine housing

Hardware frame of Rainbow 1390 laser machine RBL1390H was made from 2 mm thickness steel plate. Ensure nice steadiness of machine when working. And avoid the influence of precision from vibration..

Linear guide rail
Both X and Y axis of machine were installed with linear guide rails. High precision movement of X and Y direction is necessary for prefect engraving and cutting works. And high standard linear guide rails make laser head move smoothly and no noise.

Working table
Height adjustable platform make more thicker raw materials can be engraved and cut. Honeycomb platform can hold small materials for cutting and engraving. Good hardness make platform not deform and have stable structure. Both Honeycomb and blade working table are available.

Laser head and belt
Focus lens will be dustproof in the industrial laser head. And air blowing is build-in the laser head. The laser head comes with infrared red point positioning. Easy to find engraving or cutting beginning position before machine working. Imported belt has high precision on X and Y axis movement. Ratio wheel on X axis make laser head have perfect precision when do engraving works.

Imported mirror adjust light path efficiently. And high quality mirror holder give stable position and angle to mirrors. Ensure prefect light path when machine works.

Stepper motor

Famous brand Leadshine 57mm stepper motor and driver give high precision movement of X and Y axis to laser head. Make the machine be able to engrave and cut prefect works.

Control panel

Ruida control system has a simple control panel which make machine be easy to operate. The machine can work off-line (without computer connection). And designs can be loaded to machine from an USB disk directly.

Rainbow 1390 laser machine RBL1390H comes with an user-friendly software. Operation guide and videos in English will be provided to customers with machine together. And engineer on-line support if customers have any question of software operation or machine operation.

We focused on all details of our products, To achieve a perfect laser machine!

Each of Rainbow laser engraving machine should be inspected well before delivery, Machine and all parts were packaged by soft foam. It will be delivered to customers safely.



Rainbow laser machine was packaged in exported standard non-fumigation wooden case. 100w RBL1390H Co2 laser engraving & cutting machine package dimension 200*162*128c m, gross weight 496 kg (Includes CW5200 water chiller).

Q1: What’s your delivery time ?
A1: The delivery lead time is within 7 working days after deposit received.

Q2: How to pay ?
A2: Telegraphic Transfer (T/T) payment, Western Union…. are all available.

Q3: What is Warranty Policy ?
A3: 12 months warranty and lifelong technical support.

Q4: Once there is something need replace, what can I do ?
A4: Our machines’ quality is 100% guaranteed, and the spare parts can be replaced free of charge within 12 months warranty by non-human reasons, and the airfreight is also borne by us.

Q5: If I have some technical problem, how can you help us to solve it ?
A5: We provide detailed user manuals, video instructions and trouble shooting. You can learn from it quickly and easily. Also we have many experienced technicians are providing technical support for all of our customers , We will teach you how to operate the machines until you master it.

Q6: This model/configuration is not suitable to me. Do you have more options?
A6: Sure. We are manufacturer of laser machines. All parts of Rainbow laser engraving machine can be customized according to your configuration demands.

Q7: How to ship to me?
A7: Rainbow laser machines can be sent to your forwarder in China if you have. Or delivered by sea/air/express via our forwarders. It will safely arrive to you.
