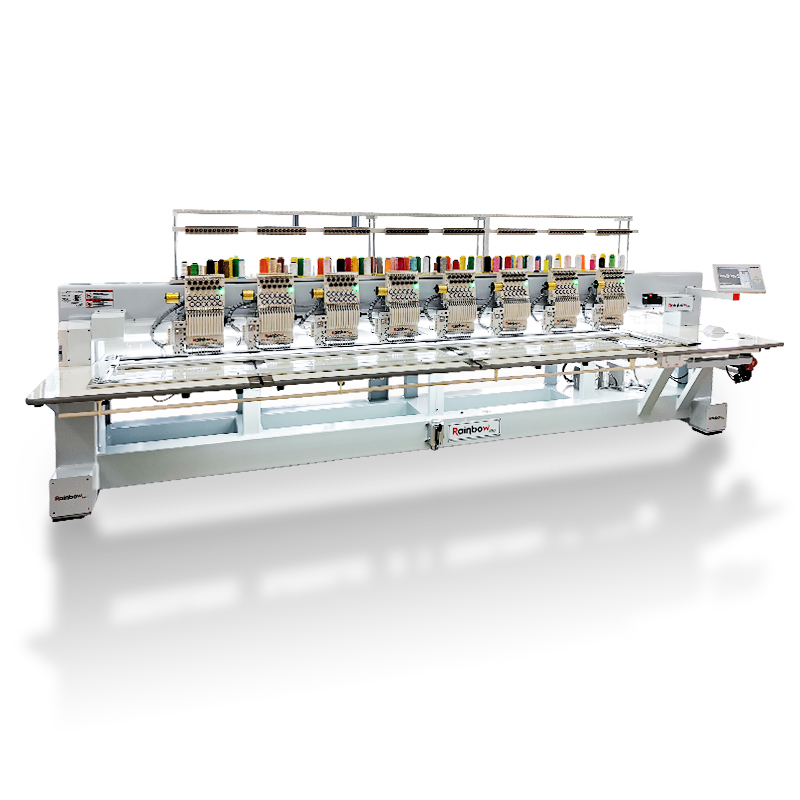

Rainbow 8 Heads 12/15 Needles Endless Flat Embroidery Machine

Item No.: RBE4050-H12
Rainbow RBE4050-H12 embroidery machine is an industrial flat embroidery machine, it has large working table and table size can be customized according different demands. it has high efficiency and can be used for curtain, carpet etc large items embroidery

Model: RBE4050-H12 Needles: 9/12/15
Control system: Raynen Cap frame unit: Customized (270 degree rotate)
Max embroidery size: 40*50 cm for each head Power: 1200W
Maximum Speed: 1200 RPM Gross weigth: 1500 kg
Memory Capacity: 20 million stitches Package dimension: 450*165*151 cm

Machine frame and housing

Rainbow embroidery machine RBE4050-H12 has unique design which patent protected. All machine frame and housing was made from galvanized steel which is sturdy and durable. Its structure will be still firm after many years using.

Servo motor, belt and bearing

Rainbow embroidery machine comes with imported servo motor, belt and bearing which make machine have accurate movement on X and Y axis. To achieve perfect embroidery works.

Adjustable working table

Rainbow multi heads embroidery machine has adjustable working table, Length and width are both can be adjusted to fit different size fabrics. Also cap embroidering device can be customized if you need multi heads machine for caps embroidering.

Machine head

9/12/15 needles all can be installed on Rainbow multi heads embroidery machine.
Rope, sequin and beading devices are all available.
Heads distance can be customized as well. Let's customize an unique machine for you:)


Pneumatic device
Rainbow embroidery machine has pneumatic device for rope, sequin and beading devices controlling. More effective controlling for above devices up and down. And more easy maintenance

Laser positioning and lamp

Rainbow multi heads embroidery machine has laser positioning devices. Make you find start position quickly.
And adequate lighting at bottom of machine, Changing bobbin become very easy.


Anti-wind pipe

Rainbow embroidery machine comes with anti-wind pipes for each color thread. To avoid thread twined with each other.

Control screen

Machine control system can be customized according customers' demands. We will provide detailed support videos and user manual with machine together. and engineer supporting if customers have any question about machine installation or operation.

Lubricating oil supply

Rainbow multi heads embroidery machine has lubricating oil supply tank under machine. Lubricating oil can be supplied to each head when pull the handle. Save much time for customers on maintenance.

Customizable machine
Rainbow digital can customize all parts of machine for customers to meet various demands. Head quantity, working area of each head, assistant attachments are all can be customized. Get in touch with us and get solution from Rainbow team!
We focused on all details of our products, To achieve a perfect embroidery machine!

Customers Feedback

Each of Rainbow embroidery machine should be inspected well before delivery, Machine was fixed on bottom of case, all parts were packaged by soft foam.



Rainbow embroidery machine was packaged in exported standard non-fumigation wooden case. RBE4050-H12 package dimension 4.6×1.6×1.4m, gross weight 1500kg.

Q1: What’s your delivery time ?
A1: The delivery lead time is within 7 working days after deposit received.

Q2: How to pay ?
A2: Telegraphic Transfer (T/T) payment, Western Union…. are all available.

Q3: What is Warranty Policy ?
A3: 12 months warranty and lifelong technical support.

Q4: Once there is something need replace, what can I do ?
A4: Our machines’ quality is 100% guaranteed, and the spare parts can be replaced free of charge within 12 months warranty by non-human reasons, and the airfreight is also borne by us.

Q5: If I have some technical problem, how can you help us to solve it ?
A5: We provide detailed user manuals, video instructions and trouble shooting. You can learn from it quickly and easily. Also we have many experienced technicians are providing technical support for all of our customers , We will teach you how to operate the machines until you master it.

Q6: This model/configuration is not suitable to me. Do you have more options?
A6: Sure. We are manufacturer of embroidery machine. All parts of Rainbow embroidery machine can be customized according to your configuration demands.

Q7: How to ship to me?
A7: Rainbow embroidery machine can be sent to your forwarder in China if you have. Or delivered by sea/air/express via our forwarders. It will safely arrive to you.
